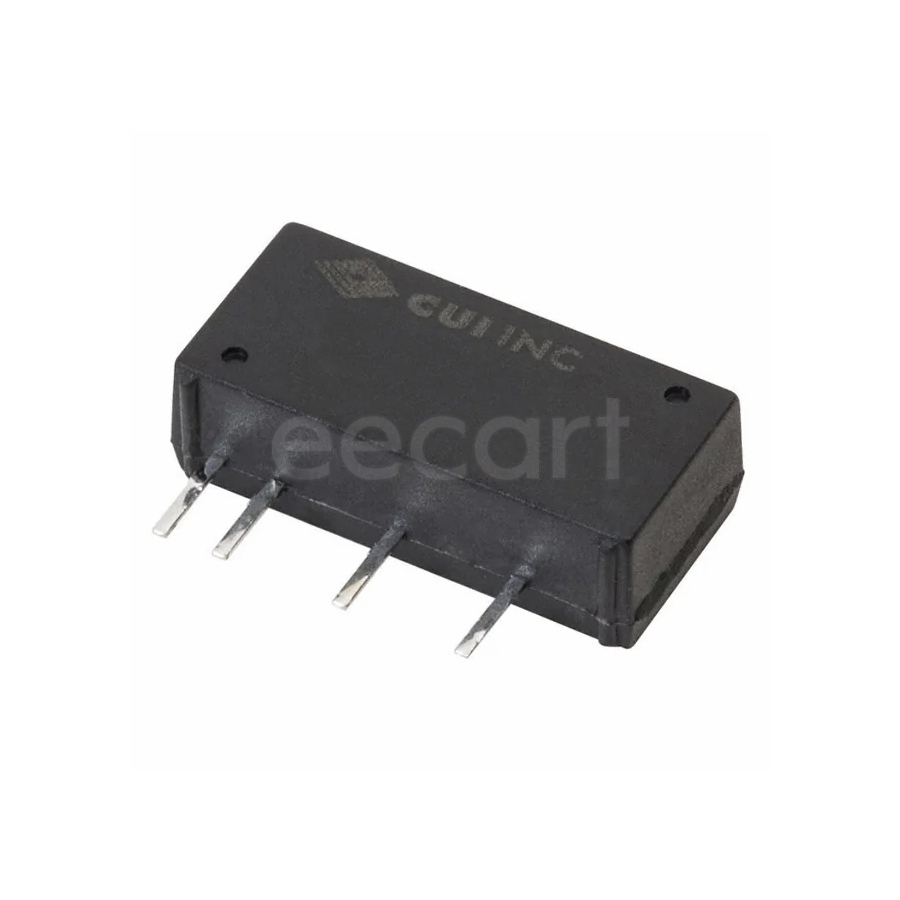

PDM1-S15-S5-S
Manufacturer:
Same Sky
Mfr.Part #:
PDM1-S15-S5-S
Datasheet:
Description:
DC to DC Converters SIP-6 Through Hole Min Input Voltage:13.5 V Max Input Voltage:16.5 V 80 %
| Parameter | Value |
|---|---|
| Length | 19.5072 mm |
| Width | 5.9944 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 9.398 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 2.4 g |
| Features | SCP |
| Min Input Voltage | 13.5 V |
| Max Power Dissipation | 1 W |
| Max Output Current | 200 mA |
| Max Input Voltage | 16.5 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 1 W |
| Current - Output 1 | 200 mA |
| Efficiency | 80 % |
| Voltage - Output 1 | 5 V |
| Packaging | Tube |
| Output Voltage-Channel 1 | 5 V |
| Output Current-Channel 1 | 200 mA |
Stock: 306
Distributors
pcbx
pcbxUnit Price$3.44793
Ext.Price$3.44793
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.44793 | $3.44793 |
| 10 | $3.34790 | $33.47900 |
| 25 | $3.15383 | $78.84575 |
| 50 | $3.15084 | $157.54200 |
| 100 | $3.14785 | $314.78500 |
| 300 | $3.14144 | $942.43200 |
| 500 | $3.13503 | $1567.51500 |
| 1000 | $3.12904 | $3129.04000 |
| 3000 | $3.12607 | $9378.21000 |
| 5000 | $3.12306 | $15615.30000 |
